PRINCE VALIANT: 1/6 figure Sculpt by Sonny Phillips



Picture of Figure to be patterned from.

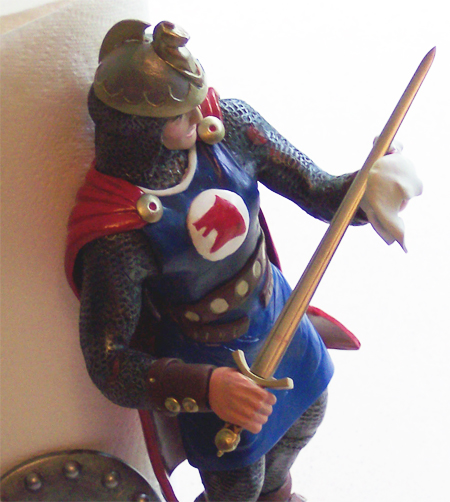

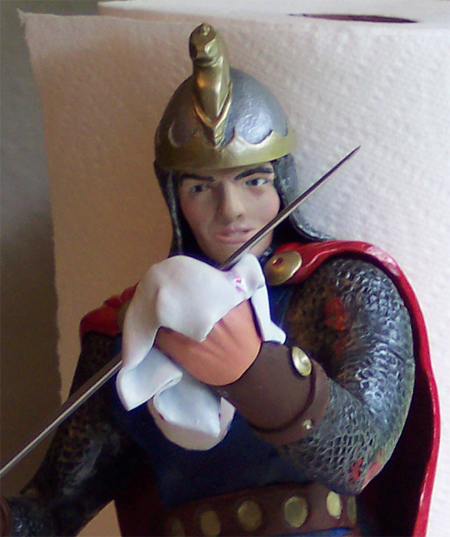

-Click Here- to see Completed Val Sculpture

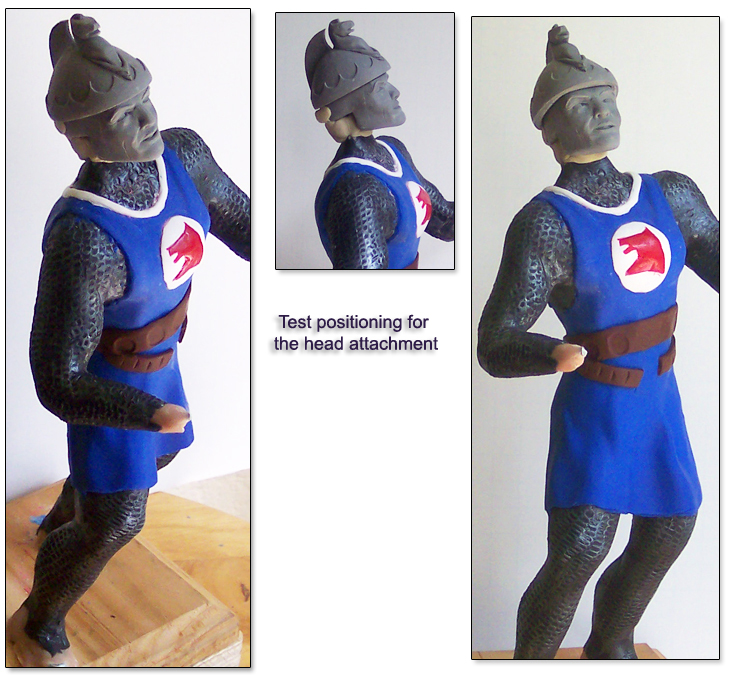

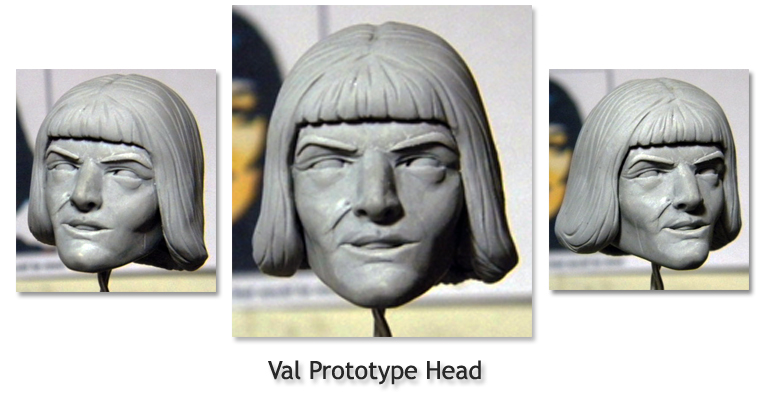

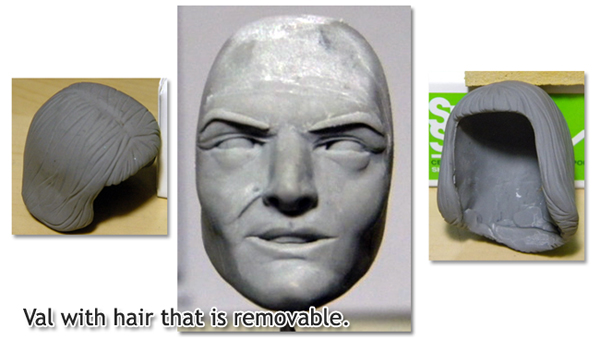

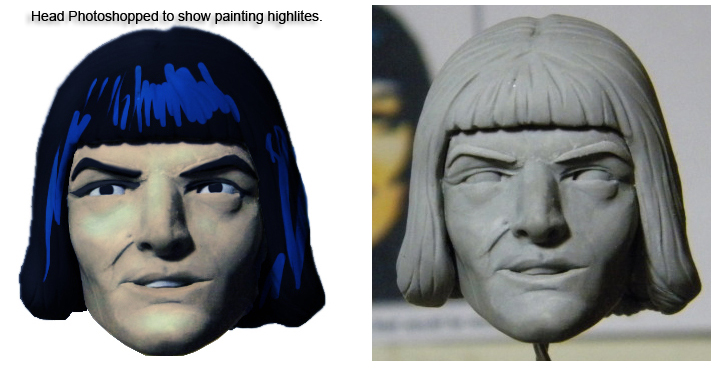

Head / Body Sculpture Notes

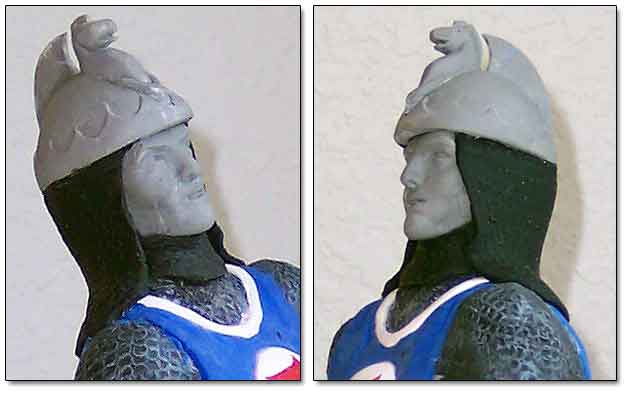

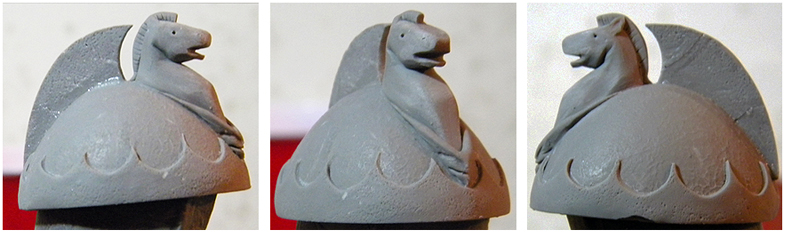

Helmet

-click here- for a photogallery of the completed sculpture.

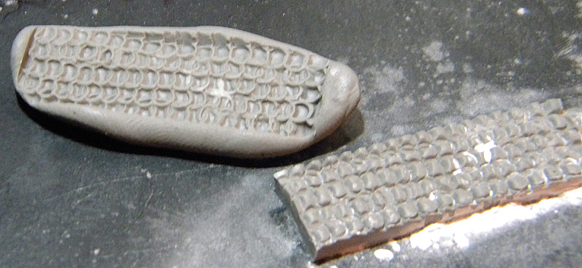

Chain Mail Tool Stamp


Figure Size Guide

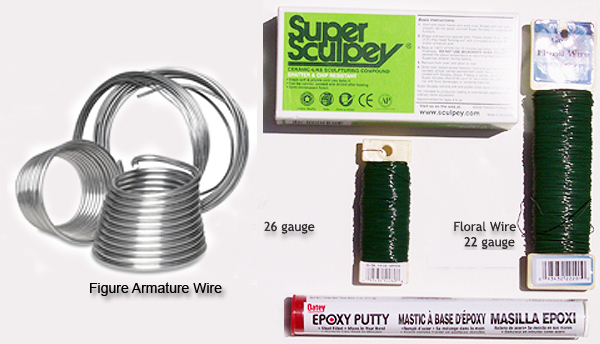

Aluminum wire is light weight and fully pliable for making large size sculptural armatures.
Non-staining and non-corrosive.
The pliable, non-staining wire easily adjusts to almost any position.



Liquid Sculpey

Translucent Liquid Sculpey (TLS)

Bakable Transfer & Color Medium

Translucent Liquid Sculpey (TLS) is liquid polymer clay, and it opens a whole new arena for artists and crafters alike! It is a bakable transfer medium for the new millennium! When artist's oil paints are mixed with it, it can be an enamel, a glaze, or a backfilling compound. When pigments or mica powders are mixed with it, it can be a stipple, a metallic glaze, or a grout for polymer clay mosaics.

TLS is a fantastic transfer medium, also. It is a terrific adhesive agent. Its adhesive qualities are activated only after baking. It increases the clay to clay bond between raw layers of clay, and when adding raw layers to previously baked layers. Baking temperatures are similar to solid polymer clay, but translucence increases when the temperature is bumped to 300 degrees for a short period of time. This technique takes careful attention and a well calibrated oven!


Item No. ATLS02 - 2oz.

Item No.
ATLS08 - 8oz.



Uses:

  • Make transfers from
    • Offset printed images like magazines, etc.
    • Black & white and color photocopies
    • Colored pencil drawings
  • Add oil paints to make a bakable painting and surface medium
  • Add dry pigments to create glazes and color washes
  • Create stained glass effect suncatchers and window clings
  • Use with polymer clays for
    • A bakable adhesive
    • Grout for mosaics
    • Creating faux enameling
    • A translucent glazing and polishing medium

Example of Colored Pencil Transfer Technique

1. Color you design with colored pencils

2. Paint on Liquid Sculpey and bake

3. After baking, wash off paper

4. Design has permanently transferred onto Liquid Sculpey! Use the flexible image to decorate clay items, or windows or for decoupage!

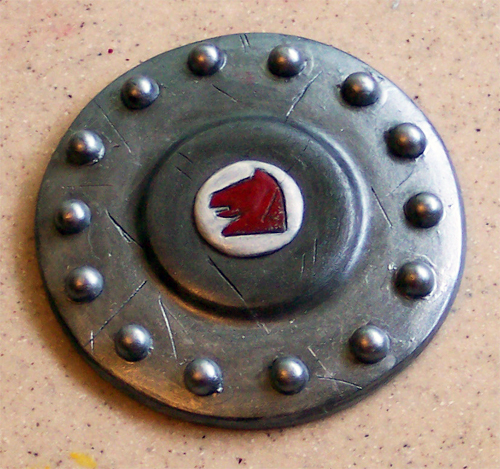

First Shield Armature pictures.

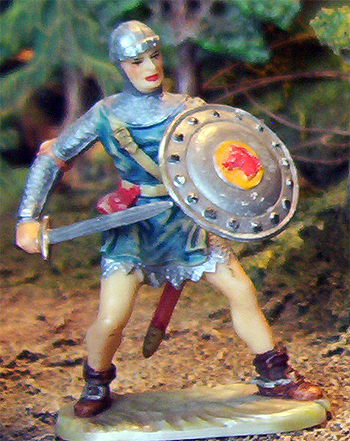

Example of Shield on figure.

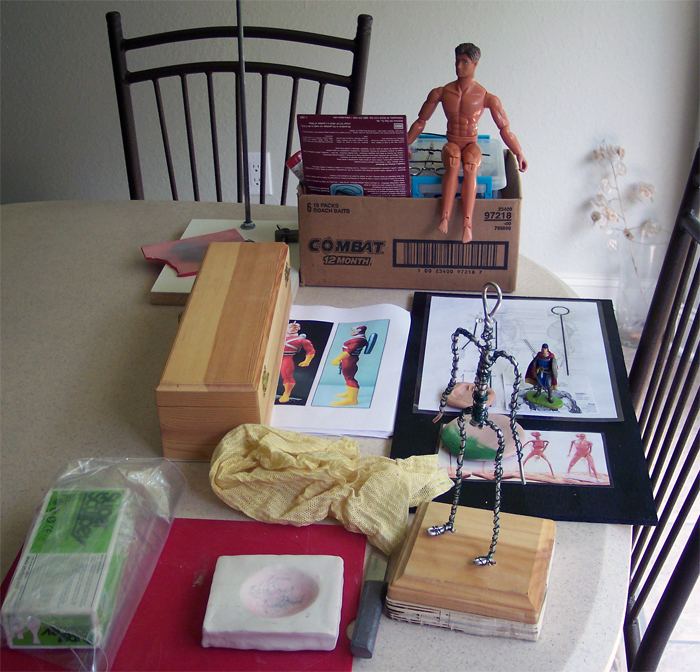

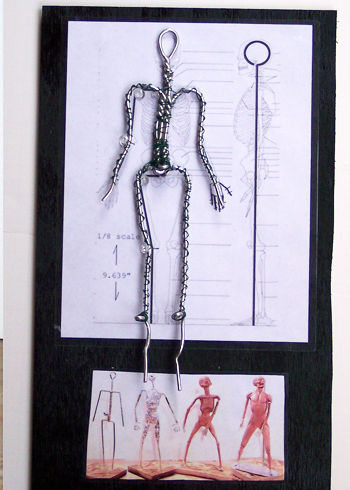

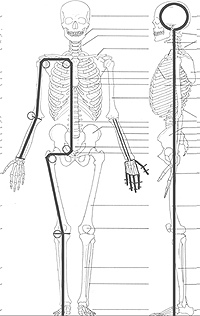

Armature created for Val figure completed.

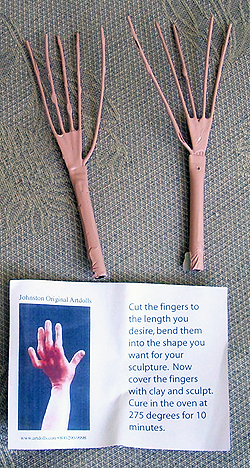

Jack Johnson Hand Armatures


1st layer of Clay

First layer of clay applied and then armature was bent into position for body, arms and legs.

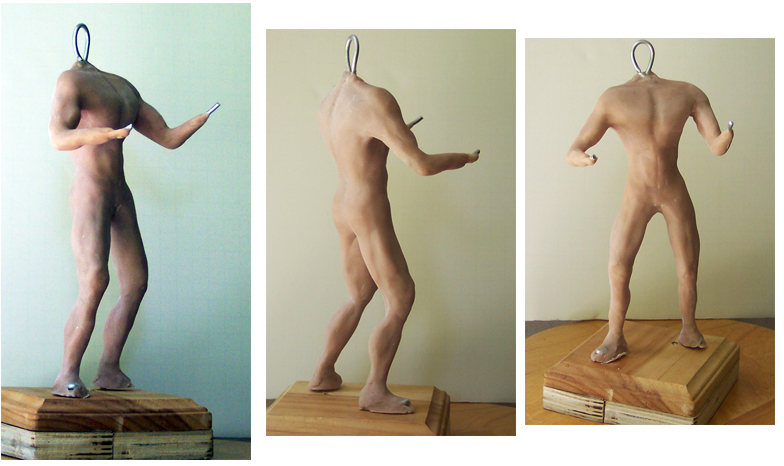

2nd layer of Clay

Second layer of clay applied. Figure baked. Need to add bulk and cut and reposition figure.

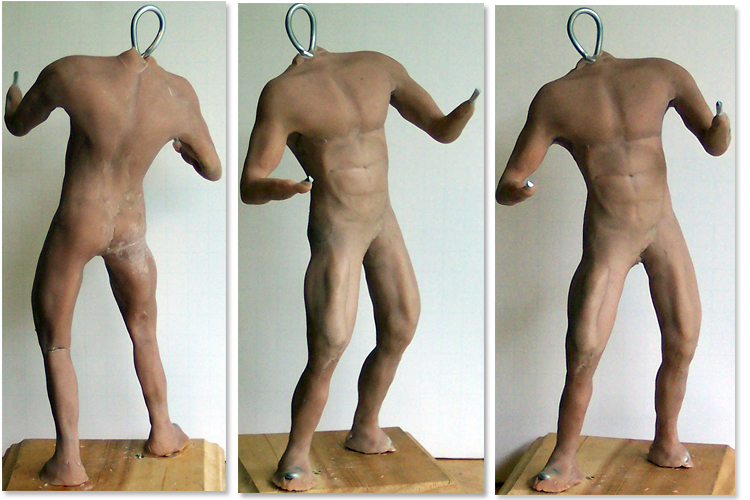

3rd layer of Clay

Third layer of clay applied. Figure baked. Bulked out legs, added ribcage, buklked out abdomen and cut waist and repositioned figure.

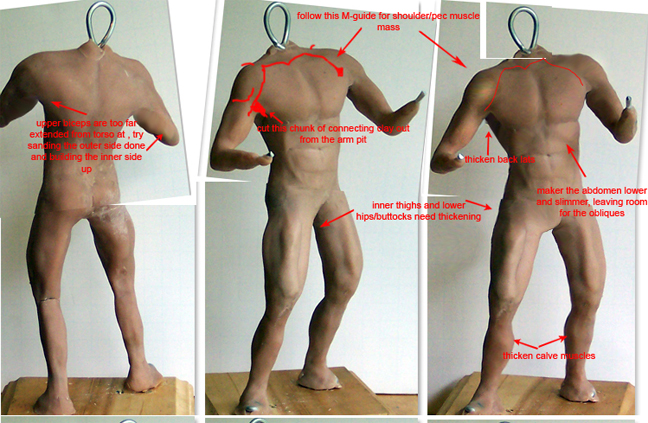

Picture of Sean's Recommendations.

Example of how to fix figure by Sean Buford.

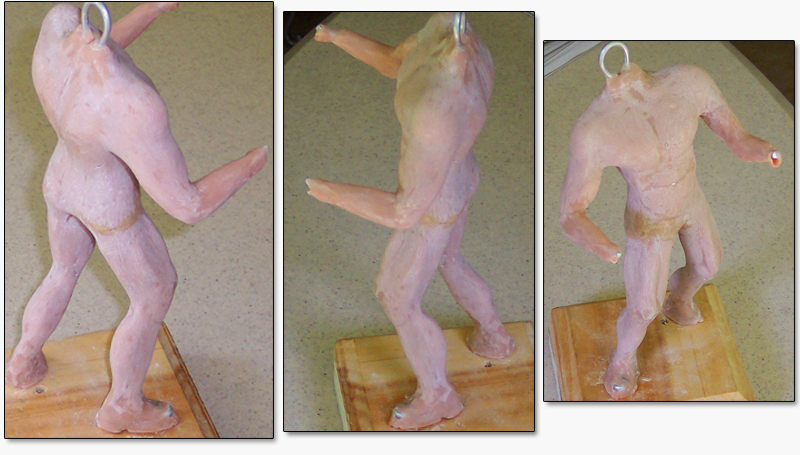

4th layer of Clay

Fourth layer of clay applied. Figure baked. Per Sean Bulked out legs, added ribcage, added bulk to shoulders.

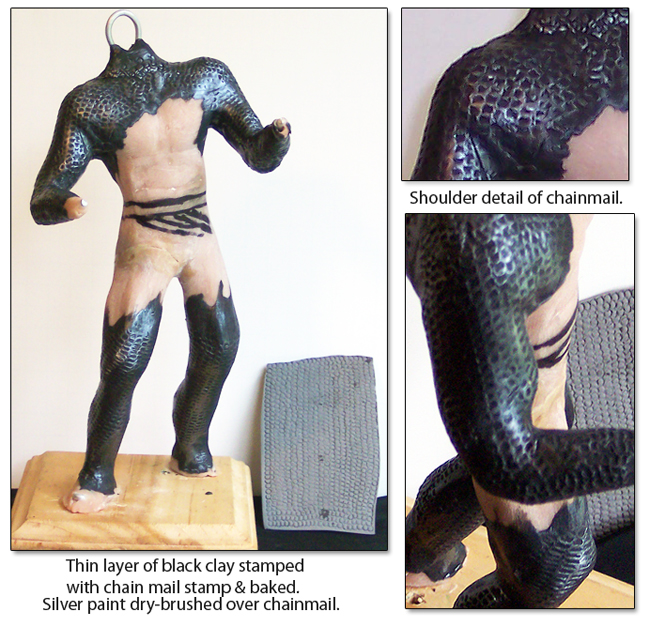

Layer of Chain Mail Clay

Chaim mail clay applied, stamped & baked then drybrushed.

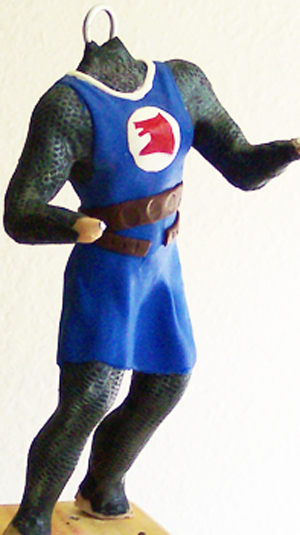

Tunic and Belts added

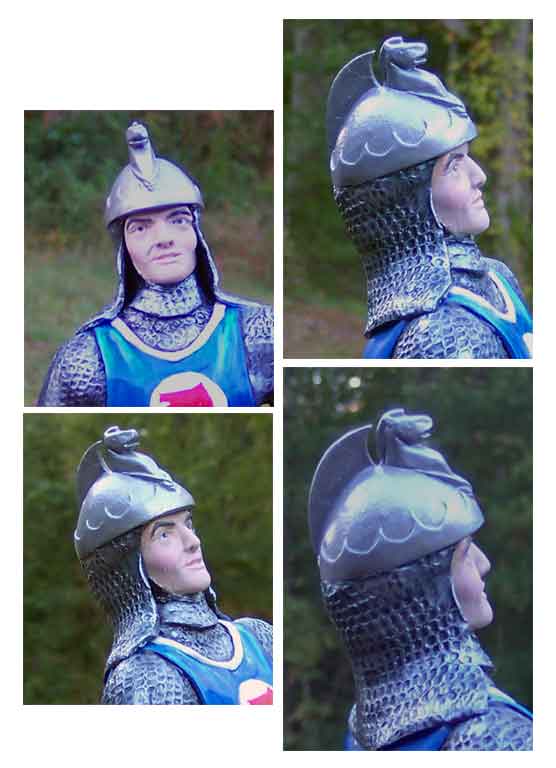

I am using different colored clay for the parts because when I paint the whole figure it will be better, I hope. I did do a little drybrush painting on the chainmail to be sure it was going to look alright. Other than that painting I will wait till he is finished and then paint him.

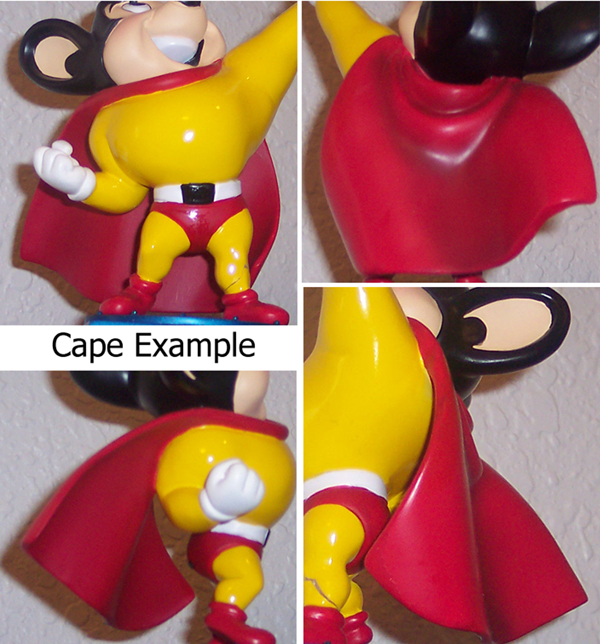

Cape Example

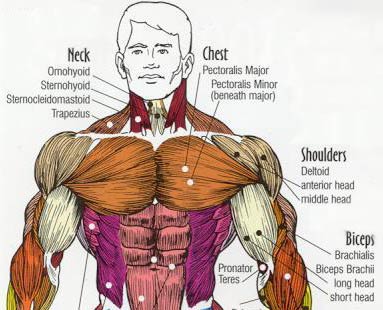

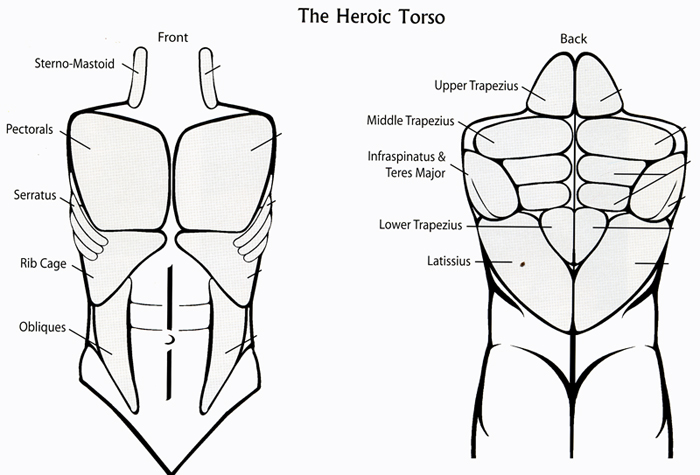

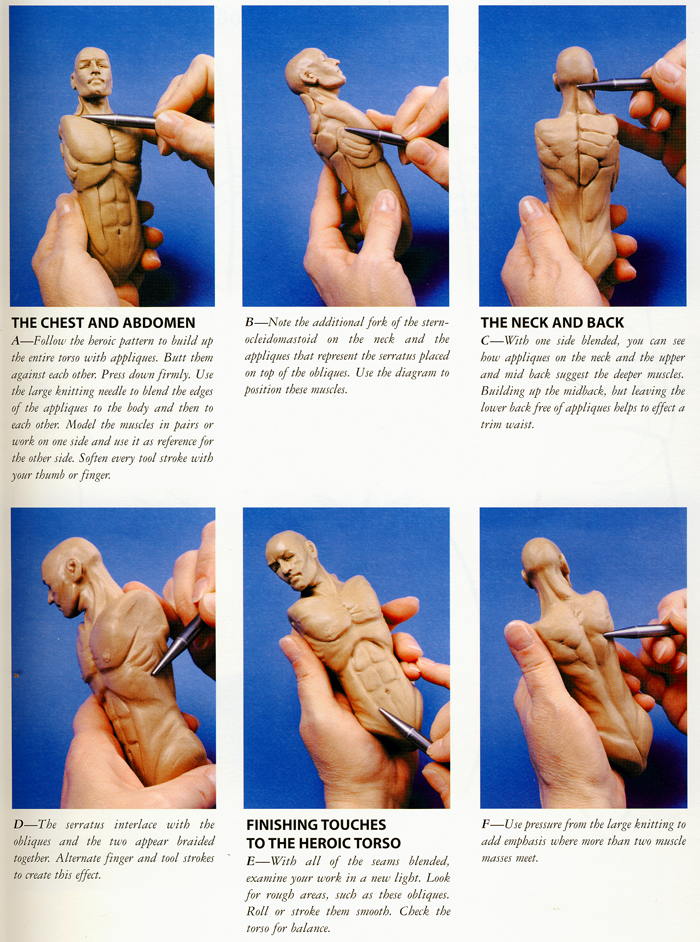

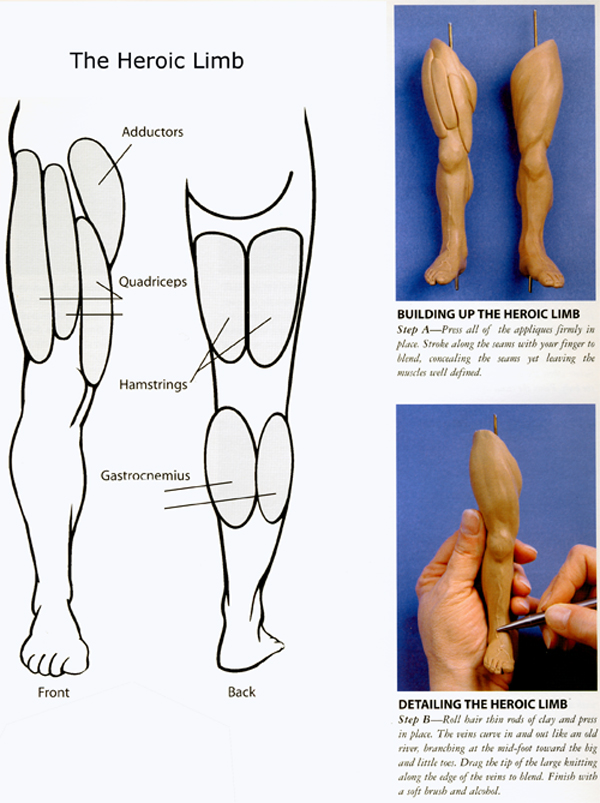

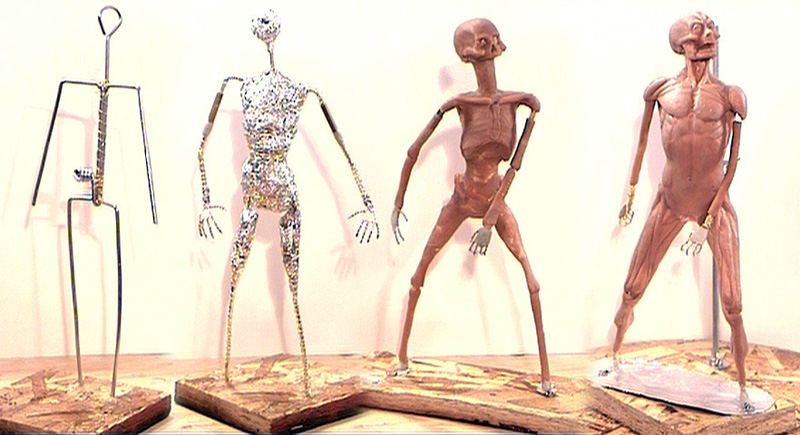

Anatomy Guide pictures.

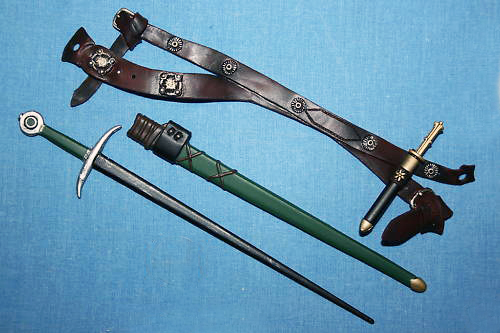

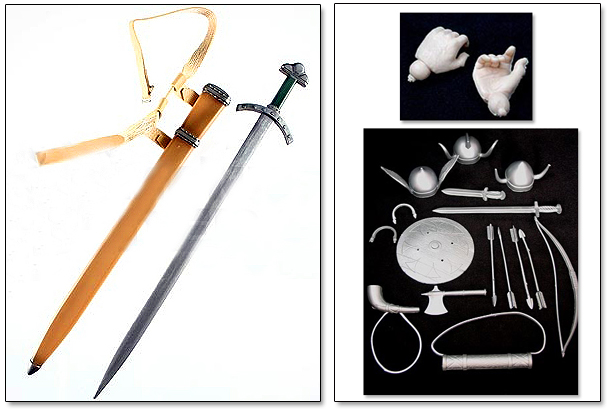

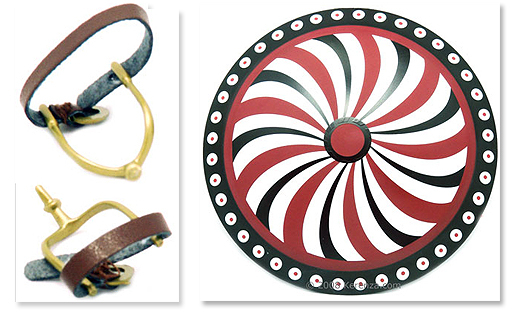

Parts for accurate sizing.

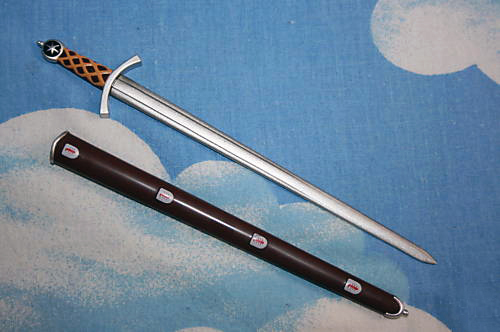

IGNITE 1/6TH SCALE KNIGHTS SWORD & BELT/ TEMPLAR CU-033

DRAGON 1/6TH SCALE KNIGHTS SWORD AND BELT

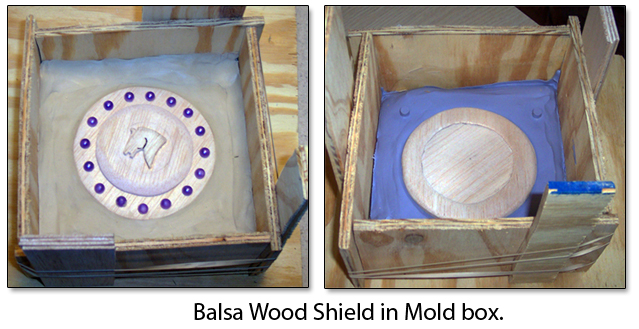

Creating the Mold
Mold Material OOMOOŽ Silicone Rubber
OOMOOŽ Silicone Rubber - No Scale or Vacuum Chamber Required
OOMOOŽ 25 & 30 are easy to use silicone rubber compounds that feature convenient one-to-one by volume mix ratios (no scale necessary). Both have very low viscosity for easy mixing and pouring, and vacuum degassing is usually not necessary. Both products cures at room temperature with negligible shrinkage and have good tear strength. OOMOOŽ 30 has a 30-minute pot life, with a six-hour cure time. OOMOOŽ 25 is a faster version, with a 15-minute pot life and 75 minute cure time. OOMOOŽ 25 & 30 are suitable for a variety of art-related and industrial applications including making molds for sculpture and prototype reproduction, casting plaster, resins and wax.

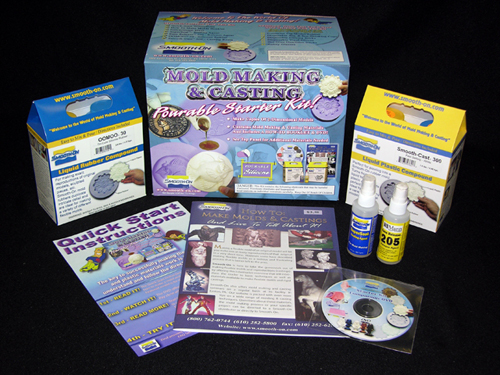

Starter Kit:
Net Weight : 6.85 Lbs.
total w/ shipping: $62.99

www.smooth-on.com

User: sonny@triballight.com
Password: ztsCS



Making a One-Piece Silicone Mold

Making a 2-Piece RTV Silicone Rubber Mold

Klean Klay

www.columbusclay.com
Columbus Clay Company
1080 Chambers Road
Columbus, OH 43212

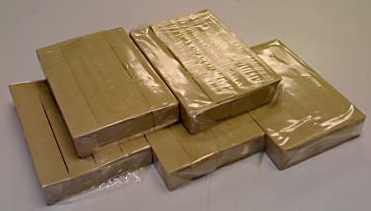

Klean Klay 10 lbs. of Klean Klay Oil Based Modeling Clay! 5 one pound blocks are shown in the picture.
It is a sulphur-free modeling clay great for modeling figurines, models for plaster casting and just general fun! It never hardens and can be used over and over again. This is a non-firing clay so please don't put it in a kiln otherwise you may have a smokey mess.

Available in assorted colors or solid one-color pkg. 4 ea. 1/4 lb. pieces (red, blue, yellow, green)
lb. $1.90

Actually got 10lbs on ebay for $1.65/lb.
Price: $16.50
Shipping: $10.05
----------------
total: $26.50

    Mold Making Materials
  • Ease Release 200
  • Plastic straws
  • 4 - Clamps
  • Glue Gun
  • Foam Core for Sides
  • Klean Klay 10 lbs.
    of Klean Klay Oil Based Modeling Clay! 5 one pound blocks are shown in the picture. It is a sulphur-free modeling clay great for modeling figurines, models for plaster casting and just general fun!
    It never hardens and can be used over and over again. This is a non-firing clay so please don't put it in a kiln otherwise you may have a smokey mess.
    Casting Materials
  • Smooth Cast 300
  • Large Rubber Bands

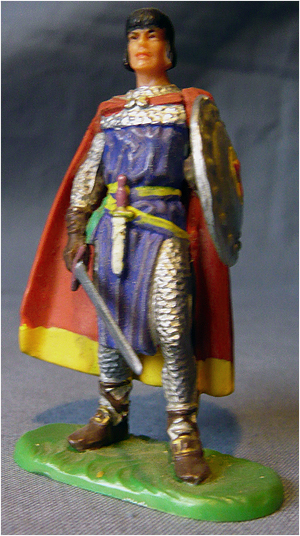

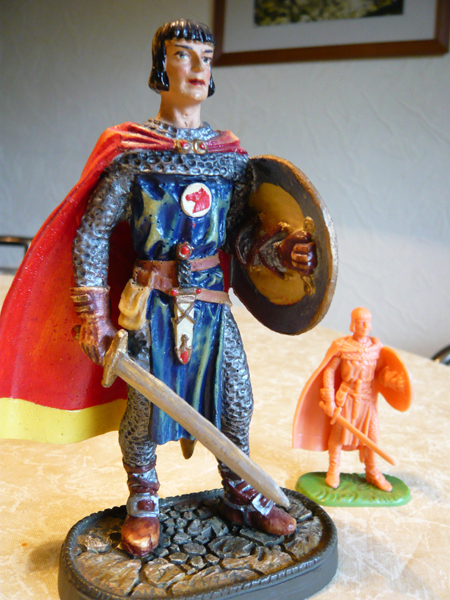

German made Sculpture

Mr.Packert Neustadt, Germany
Custom Prince Valiant 6" tall


Reference Pictures for color of clothing.
